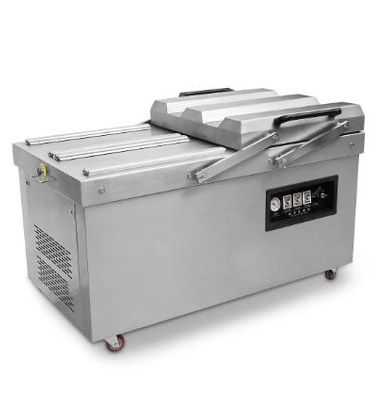

DZ-600/4SC雙室平板四封口真空包裝機
包裝機
2019.11.11
DZ-600/4SC雙室平板四封口真空包裝機 | |
DZ-600/4SC DOUBLE CHAMBERS VACUUM PACKAGING MACHINE | |
電源電壓(v/Hz)voltage | AC380/50 |
真空泵電機功率(W)Motor Power | 3000 |
熱封功率(W)Sealing Power | 2200 |
真空室最低絕對壓強(Kpa)Ultimate Vacuum Pressure | 1 |
每室熱封條數(pcs)No.of Sealing Bars for Each Chamber | 4 |
真空室內尺寸(LxWxH)(mm)Chamber Dimension | 700*660*70 |
熱封條長度Sealing Length | 600 |
熱封寬度Sealing Width | 10 |
真空泵排氣量(m3/h)Vacuum Pump Rate | 100*1 |
真空室材質Material for Vacuum Chamber | 不銹鋼Stainless steel 304 |
外形尺寸(LxWxH)(mm)Dimension | 1490*900*900 |
凈重Net Weight | 360 |
兩條封口之間的中心距離The center distance between two sealing bars | 280 |
DZ-600/4SC雙室平板四封口真空包裝機 | |
DZ-600/4SC DOUBLE CHAMBERS VACUUM PACKAGING MACHINE | |
電源電壓(v/Hz)voltage | AC380/50 |
真空泵電機功率(W)Motor Power | 3000 |
熱封功率(W)Sealing Power | 2200 |
真空室最低絕對壓強(Kpa)Ultimate Vacuum Pressure | 1 |
每室熱封條數(pcs)No.of Sealing Bars for Each Chamber | 4 |
真空室內尺寸(LxWxH)(mm)Chamber Dimension | 700*660*70 |
熱封條長度Sealing Length | 600 |
熱封寬度Sealing Width | 10 |
真空泵排氣量(m3/h)Vacuum Pump Rate | 100*1 |
真空室材質Material for Vacuum Chamber | 不銹鋼Stainless steel 304 |
外形尺寸(LxWxH)(mm)Dimension | 1490*900*900 |
凈重Net Weight | 360 |
兩條封口之間的中心距離The center distance between two sealing bars | 280 |
